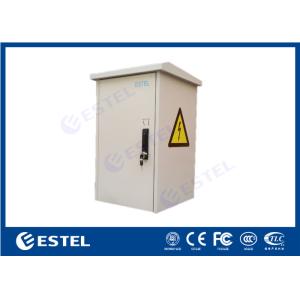

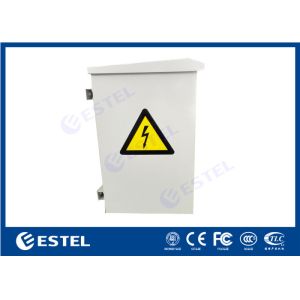

Rustproof Wall Mounted Outdoor Electrical Cabinet Pole Mount Enclosure

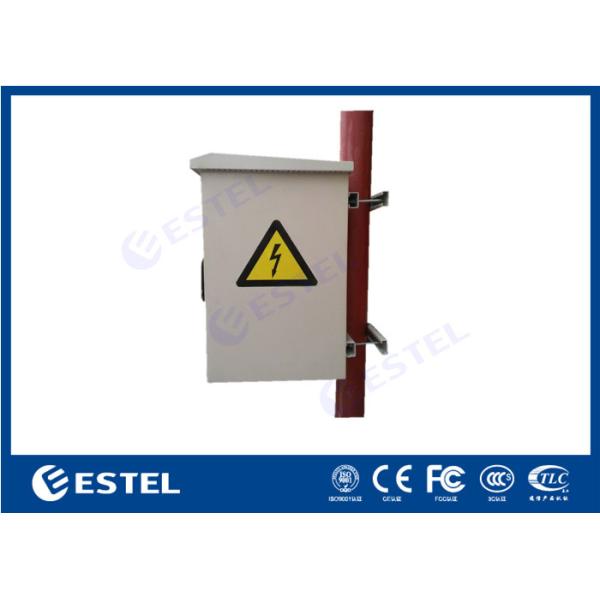

Rustproof Wall Mounted or Pole Mounted IP55 Outdoor Telecom Cabinet

1, Description Of Outdoor Telecom Cabinet
Outdoor cabinets are designed to provide a safe solution to install telecommunications equipment in outdoor conditions. These cabinets are offering protection against different weather conditions, dust and vandalism. The cabinet is with one compartment. Using air conditioner to ensure the equipment operate normally at stable temperature range, so as to make the service life of the equipment much longer and their performance more stable.

2, Selling points and Feature Of Outdoor Equipment Cabinet

>>> The cabinet is sunproof and waterproof, which is used in outdoor environment.

>>> The cabinet use fans for cooling.

>>> The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding. There are entrance holes individually for power cable, signal cable and optical cable.

>>> All the cables used in the cabinet are made from flame retardant materials

>>> Cabinet design with IP55 (according to IEC 60529) protection class

>>> Anti-corrosion

>>> Surface treatment: Degreasing, Derusting, rustproof Phosphating (or galvanizing),

powder coated.

>>> Hidden hinge, inside screws, enhance the theft-proof

>>> Support Custom Made

3, Technical Parameters

4, Accessories List

5, Enclosure Cooling

4 Pcs DC48V Fans.

6, Cabinet Structure

(1) External Dimension 435mm×460mm×736mm (W×D×H)

(2) One compartment; The cabinet door uses embedded structure. The door opening angle is larger than 110° and the door limit device can limit the opening angle. The lock is theftproof three point lock, supports padlock.

(3) The cabinet is made of hot dip galvanized steel, double walls structure. There are heat insulation between the two walls. It is easy for installation and with perfect sealing performance.

7, Cabinet Layout Diagram:

8, Installation Picture

FAQ

Q1: Are you a manufacturer?
A: Yes, we are a experienced manufacturer with our own design and production lines.
Q2. Do you have any MOQ limit for outdoor cabinet ?
A: Low MOQ, 1pc for sample checking is available.
Q3: Can I get sample order?
A: Yes, we would like to get your sample order for testing our quality, the sample cost is paid by the customer.
Q4: Are you able to customize items with design or logo?
A: Yes, OEM & ODM is available.
Q5: How do you ship the goods and how long it will take?
A: We normally make shipment by sea or air which usually takes about 10- 50 days depend on the destination.
Q6: How long is the product warranty ?
A: We guarantee all our products 12 months warranty.
