Dustproof Equipment Enclosures Outdoor Telecom Cabinet Thick Aluminum

Tianjin Estel Electronic Science and Technology Co.,Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Dustproof Equipment Enclosures Outdoor Telecom Cabinet Thick Aluminum from wholesalers

    Buy cheap Dustproof Equipment Enclosures Outdoor Telecom Cabinet Thick Aluminum from wholesalers
    • Buy cheap Dustproof Equipment Enclosures Outdoor Telecom Cabinet Thick Aluminum from wholesalers
    • Buy cheap Dustproof Equipment Enclosures Outdoor Telecom Cabinet Thick Aluminum from wholesalers
    • Buy cheap Dustproof Equipment Enclosures Outdoor Telecom Cabinet Thick Aluminum from wholesalers
    • Buy cheap Dustproof Equipment Enclosures Outdoor Telecom Cabinet Thick Aluminum from wholesalers

    Dustproof Equipment Enclosures Outdoor Telecom Cabinet Thick Aluminum

    Ask Lasest Price
    Brand Name : ESTEL
    Model Number : ET6580217-EQ-2D
    Certification : ISO9001
    Payment Terms : T/T, L/C, D/A, D/P, Western Union, MoneyGram
    Supply Ability : 1800PCS per month
    Delivery Time : 15 to 20 days
    Price : 358-2143 usd
    • Product Details
    • Company Profile

    Dustproof Equipment Enclosures Outdoor Telecom Cabinet Thick Aluminum

    Dustproof Equipment Enclosures Outdoor Telecom Cabinet Thick Aluminum


    Thick Aluminum IP65 43U Outdoor Telecom Cabinet Waterproof Dustproof Equipment Enclosure


    1. Outdoor equipment cabinet brief


    Model ET6580217-EQ-2D is a 43U outdoor equipment cabinet. It adopts the front and back door opening mode, which makes the installation and maintenance of the equipment more convenient. At the same time, the cabinet is made of 2.5mm aluminum, which is light and corrosion resistant. Its IP grade can reach IP65.


    2. Technical parameter of outdoor cabinet


    No.DescriptionSpecification
    Specification of cabinet
    1ModelET6580217-EQ-2D
    2Cabinet DimensionW×D×H 650×800×2175mm
    3Available User Space43U standard 19” rack
    4DoorOne front door and one back door
    5LockOutdoor special anti-theft three point locking
    6MaterialAluminum, single wall, 2.5mm thickness
    7Cabinet Installation methodFloor mount
    8Cable EntryLocated on the bottom
    9Lifting4 ears on the cabinet base
    10EarthingGrounding copper bar
    11Working Temperature-40°C~+75°C
    12Protection LevelIP65
    13Relative Humidity5% ~ 100%
    14Atmospheric Pressure62kpa ~ 101kpa (similar to 0m ~ 5000m altitude)
    15Solar Radiation Intensity1120 ×(1±5%)W/m2
    Other accessories
    1LED lightAC220V 50Hz, with on/off button on the light
    Packing
    Wooden caseW×D×H 750×960×2360mm
    3. Applications

    The cabinet is suitable for outdoor, cold resistance, heat resistance, wind and rain resistance, dust resistance. Special aluminum material, more suitable for use in the seaside and humid and salty areas.


    4. Feature


    (1) The embedded structure door enhances the anti-theft effect.

    (2) It is made of high corrosion resistant aluminum.

    (3) Standard 19 inch rack.

    (4) High protection grade IP65, waterproof and dustproof, effectively protect the equipment in the cabinet.

    (5) The cabinet adopts three-point lock to prevent illegal entry.


    5. Advantage

    • Multi-stage cleaning and pre-treatment prior to the application of a 120micron powder coating
    • The cabinet structure have earthquake resistance function
    • Space layout is reasonable, greatly reducing the construction cost
    • Waterproof, anti-corrosion, anti sand and anti ultraviolet, ensure cabinet can work longer in a harsh outdoor environment

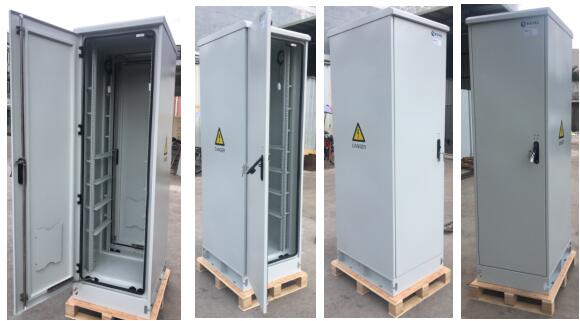

    6​. Cabinet display


    7. Cabinet Drawing



    8. Packing and Shipping


    Cabinet package use free fumigation plywood which is suitable for export. This package is anti moisture, anti impact and srong to ensure safe transportation.
