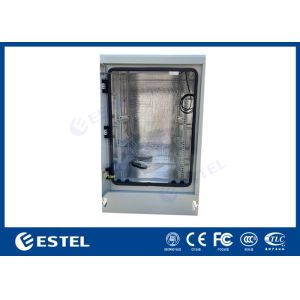

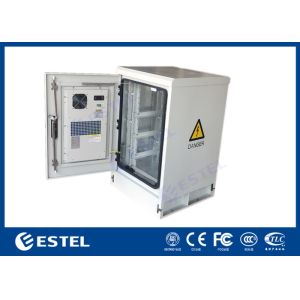

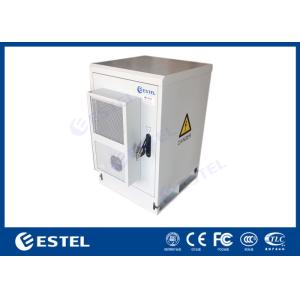

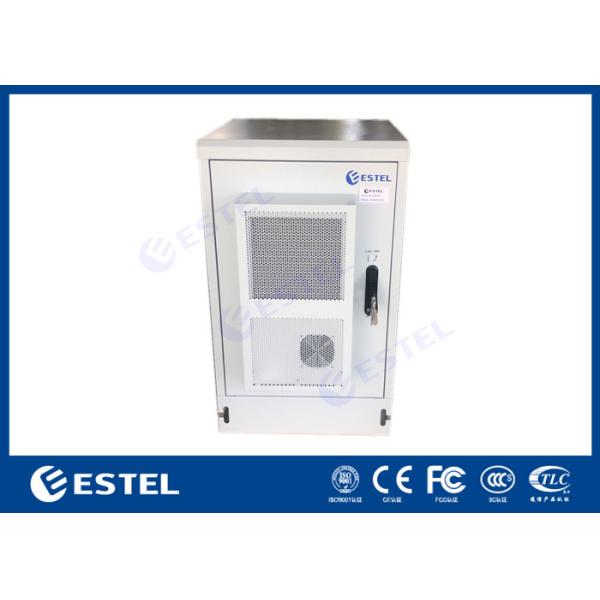

IP65 16U Galvanized Steel Outdoor Equipment Cabinet Air Conditioner With Screen

1, Description Of Outdoor Telecom Cabinet

The equipment cabinet is designed to house a variety of telecommunication equipment with 19" or 23" rack, they provide protection from vandalism, dust, rain, snow and dripping water. The material can be made from galvanized steel, aluminum or stainless steel according to different demand. Air conditioner(options: Heat exchanger/TEC/Fan) is installed on cabinet for keeping a stable temperature inside cabinet so as to increase service life and stability of equipment.

2, Feature Of Outdoor Telecom Cabinet

>>> Ingress protection is IP65

>>> Made of heavy gauge galvanized material.

>>> Front door use standard three-point anti-theft lock. The door lock forms an upper, middle and lower three-point locking structure. For the cabinet with large area, the locking effect is safe and reliable.

>>> Standard 19 inch mounting rails.

>>> It is installed in the ground root or above ground column base system by "direct burying"

>>> Cable entry is at the bottom of the cabinet

3, Specification Of Outdoor Telecom Cabinet

4, Application Of Outdoor Telecom Cabinet

The outdoor Telecom Cabinet can be used for Telecommunication Wireless/Broadband Base station, Wireless cell sites & switches, Transmission terminals Data and so on. It can be installed in Car park, Track side, Building top,Mountain area,Public garden ,Seaside etc.

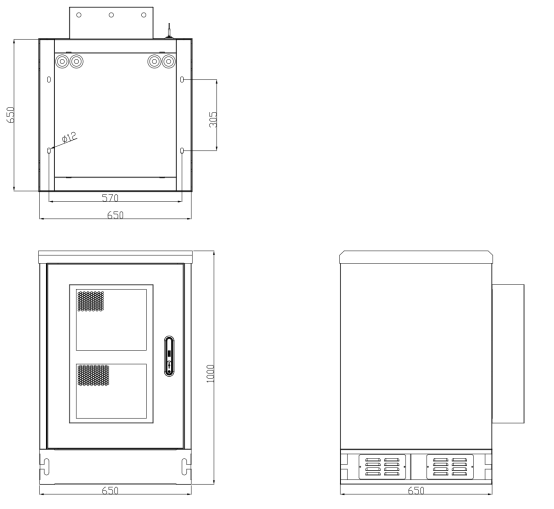

5, Dimension

6, Air conditioner Display interface

NO.	Icon	Function	Function explanation
1		Refrigerating running	Indicate whether refrigerating runs or not
2		Heater running	Indicate whether heater runs or not
3		Fan running	Indicate whether fan runs or not
4		Set key	Select function and enter parameter set
5		Up key	Increase value, page up
6		Down key	Decrease value, page down

Introduction

Tianjin Estel Electronic Science and Technology Co., Ltd (ESTEL(GUANGDONG)TECHNOLOGY CO., LTD), located in China, is a professional supplier of integrated outdoor telecom cabinet and temperature control solutions for outdoor telecom base station. As a science and technology innovative company, we engage in the R&D, manufacture, and sales of telecommunication equipment. Estel has a well-established team of technical and management experts who can meet customers’ specific needs accurately.

The base station integrated solutions and products include outdoor integrated telecom equipment cabinet, battery cabinet, RRU cabinet, power supply cabinet, environment monitoring system, TEC peltier air conditioner, AC220V compressor air conditioner, DC48V variable frequency air conditioner, heat exchanger, rectifier, UPS, embedded telecom power system etc. All the above solutions and products can be custom made.

Our products and solutions have been deployed all over China. Our main domestic customers are China Telecom, China Mobile, China Unicom, State Grid, Shenzhen / Beijing Metro and Huawei / ZTE etc. In addition, our products have been exported to Europe, North America, South America, Central America, Southeast Asia, Africa, Australia, Mid East countries, etc.

“ Customers First, Quality First ” is always our principle. We have attained many certifications, such as ISO9001, ISO14001, OHSAS18001, CE, UL, FCC etc. AS a telecom integrated solutions / energy saving system integrator in China, We have strong advantages in technology competitiveness, management competitiveness ,service competitiveness and price competitiveness. Through many years of experiences in design, production and implementation of different projects around the world, we have gained great reputation. Relying on professional technique and strict quality control, we will continuously offer high cost-effective products and solutions to our respectable customers globally. We will always try our best to meet customers’ need and requirement.
