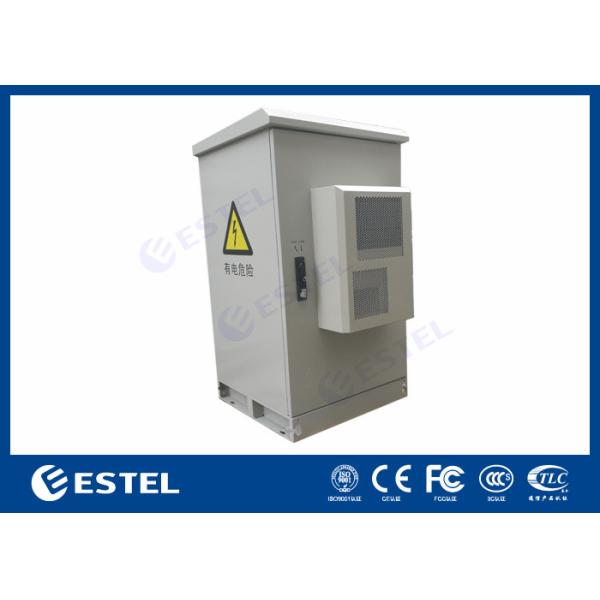

Self Cooling Outdoor Telecom Street Cabinet 19 Inch Mounting Equipment 650×650 20U

ADVANTAGES

• Very good mechanical properties and high resistance to shape distorsion.
• With water repellent injected seal.
• Door retained with stoppers.
• The enclosure includes anti-vandalism locks and handles suitable for semicylindrical profile locks.
• Delvalle can adapt this design to the measurements required by the client, retaining the fundamentals of insulation, sealing and safety.
• Strength, durability and long life.
• High resistance to vandalism.
• Specially designed for urban and interurban areas, storms or highways.
• High resistance to corrosion and wear.

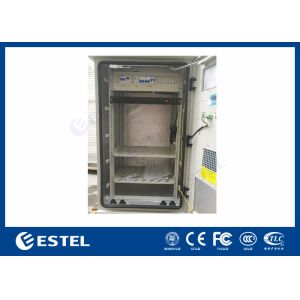

• Large space inside for Rack equipments.

APPLICATIONS

Our design, finishing and sealing make it ideal for outdoor use. As its name suggests its placement is usually on roads, signalling or lighting, and use in weather stations, telecommunications,telephones, fibre optics and video surveillance in urban or interurban areas.

CABINET PARAMETER

Cabinet size: 1200 * 650 * 650mm (HxWxD)

Cabinet material: galvanized steel plate + PEF insulation

Maintenance mode: front door access

Installation method: landing

Rack size: 19 "rack

Protection grade: IP55

Working temperature: - 40 ℃～ + 75 ℃

Cooling mode: thermostatic air conditioning

PRODUCT PICTURE

OOLING SYSTEM- AC220V 500W AIR CONDITIONER

The air conditioner is one kind of refrigeration product self-developed for cabinet. It is applicable in the place where the cabinet internal heat is very large, the internal electronic equipment is sensitive to the environment temperature and which should be isolated internally and externally completely. This product has multiple functions, high reliability, and has the feature that it can start to work without complex debugging after powering.

Introduction

Tianjin Estel Electronic Science and Technology Co., Ltd (ESTEL(GUANGDONG)TECHNOLOGY CO., LTD), located in China, is a professional supplier of integrated outdoor telecom cabinet and temperature control solutions for outdoor telecom base station. As a science and technology innovative company, we engage in the R&D, manufacture, and sales of telecommunication equipment. Estel has a well-established team of technical and management experts who can meet customers’ specific needs accurately.

The base station integrated solutions and products include outdoor integrated telecom equipment cabinet, battery cabinet, RRU cabinet, power supply cabinet, environment monitoring system, TEC peltier air conditioner, AC220V compressor air conditioner, DC48V variable frequency air conditioner, heat exchanger, rectifier, UPS, embedded telecom power system etc. All the above solutions and products can be custom made.

Our products and solutions have been deployed all over China. Our main domestic customers are China Telecom, China Mobile, China Unicom, State Grid, Shenzhen / Beijing Metro and Huawei / ZTE etc. In addition, our products have been exported to Europe, North America, South America, Central America, Southeast Asia, Africa, Australia, Mid East countries, etc.

“ Customers First, Quality First ” is always our principle. We have attained many certifications, such as ISO9001, ISO14001, OHSAS18001, CE, UL, FCC etc. AS a telecom integrated solutions / energy saving system integrator in China, We have strong advantages in technology competitiveness, management competitiveness ,service competitiveness and price competitiveness. Through many years of experiences in design, production and implementation of different projects around the world, we have gained great reputation. Relying on professional technique and strict quality control, we will continuously offer high cost-effective products and solutions to our respectable customers globally. We will always try our best to meet customers’ need and requirement.
